Description:

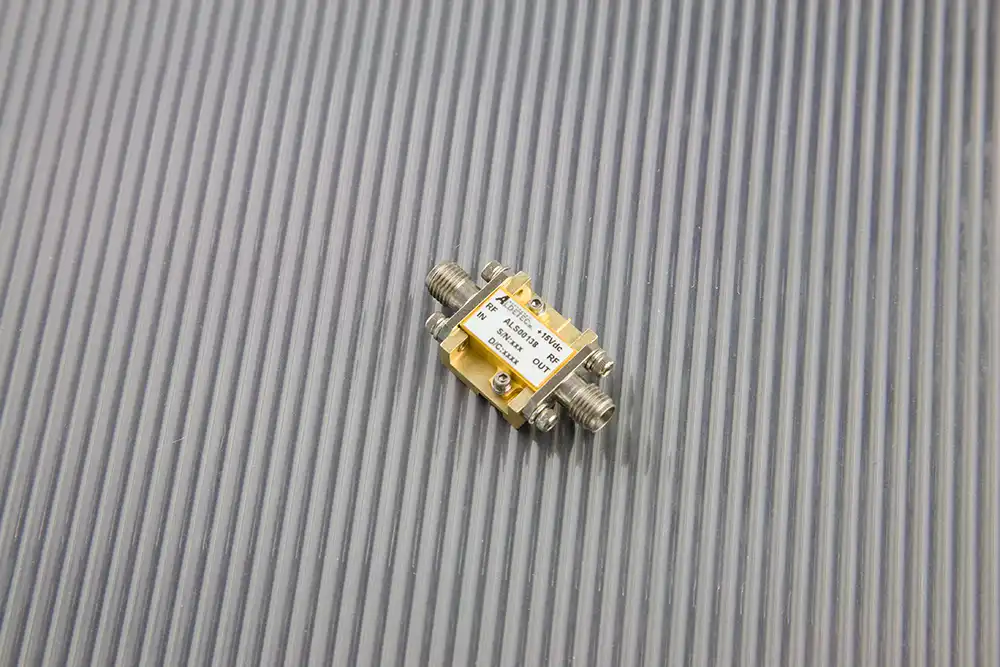

ALS04115 from UEC RF-Microwave is a Low Noise Amplifier whose frequency range is from 0.5 to 2 GHz with a 1.5 dB Noise Figure (NF) and 30 dB gain. It is a SMA-F to SMA-F design that operates at 12 to 15 Volts and across -20 to +70 degrees C.Product Specifications
Business Unit: UEC-RFMW
Group: Products
Part Number: ALS04115
Frequency Start (GHz): 0.50
Frequency Stop (GHz): 2.00
Gain Min (dB): 30.0
Gain Max (dB): 34.0
Gain Flatness +/- (dB): 1.25
Gain Variation over Temp +/- (dB): 1.0
Noise Figure Typ. (dB): 1.5
P1dB Compression (dBm) min.: 10.0
Max CW Input Power (dBm): 16.0
IP3 (dBm) Typ.: 23
Harmonics Typ. (dBc): -10
VSWR (In): 2.0:1
VSWR (Out): 2.0:1
Operating Temperature (C): -20 to +70
Input Connector: SMA-F
Output Connector: SMA-F
Case Type: L2
